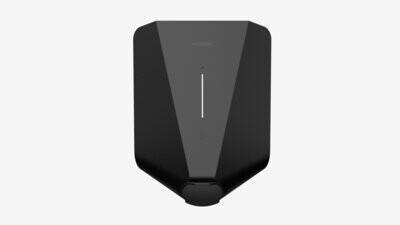

CITA SMART 7 Home & Office Premium Ev Charger
+3

CITA SMART 7 Home & Office Premium Ev Charger

CITA7SH
£649.00
In stock
1
Product Details
UPC: CS7HO
Brand: CITA

CITA brings you Smart, Simple, and Safe home and commercial charging solutions with the SMART 7. CITA charging systems combine cutting-edge technology with compact design, managing the communication between you and charger via an easy-to-use App experience.

Creating a sustainable future for all. Smart 7 charger is a compact and high-performance charging solution perfect for the everyday electric vehicle driver. Smart 7 comes with maximum power up to 7.4 kW for single-phase installation and comes with an integrated type 2 socket.

CITA Connect App

You are powered by a smart application to manage all your CITA Smart 7 monitoring and settings from your iOS or Android mobile phone.


General Specifications
Charging Socket IEC 62196 Type 2, IP54, locking
Charging Mode Mode 3 (IEC 61851-1 / SAE J1772 compliant communication protocol)
6mA DC Trip Integrated
IP Rating IP54
Operating Temperature - 30~ + 50°C
Product Dimension 300mm x 300mm x 130mm
Electrical Specifications
AC Nominal Input/Output
Phases/Lines 1 phase + netural+ PE
Voltage 230VAC+/-10%
Frequency 50Hz
AC Nominal Output
Phases/Lines 1 phase + netural+ PE
Voltage 230VAC+/-10%
Output Power 1.4kW - 7.2kW programmable
Output Current 6 - 32A programmable
Protection
Active Load Management Yes, with external CT clamp (100A max)
Dynamic Load Balancing Yes, via CITA cloud software
Warranty 3-years
Communication
Communication Method WiFi, Optional: 4G/Ethernet
Mobile App Availability Yes, Android and IOS App
Communication Protocol OCPP 1.6 - JSON

About CITA

With a drive to make mobility 100% green, CITA EV is innovating towards powering a green future. We bring to you an EV charging experience that is simple, safe and smart. Our innovative design has made our product into a compact unit that is easily installable at homes and businesses alike. A team of experts have put their best tech minds together at CITA to make the communication between you and your charger as easy as possible. We have developed an application for the same that ensures maximum charging capability with minimal effort.

CITA EV is equipped to provide world-class charging solutions for homes, businesses and cities. With offices in the U.K. UAE and the USA, the progressive global presence of CITA EV chargers is now apparent, with partnerships covering Europe, the USA and the MENA region.

To learn more about us and our products and services, please visit https://citaevcharger.co.uk/wp-content/uploads/202...
